Multi-head EDM machine
Next page
Description
Features
● The entire machine adopts a modular design, allowing free combination of the base, column, ram, oil tank, electrical control, etc.

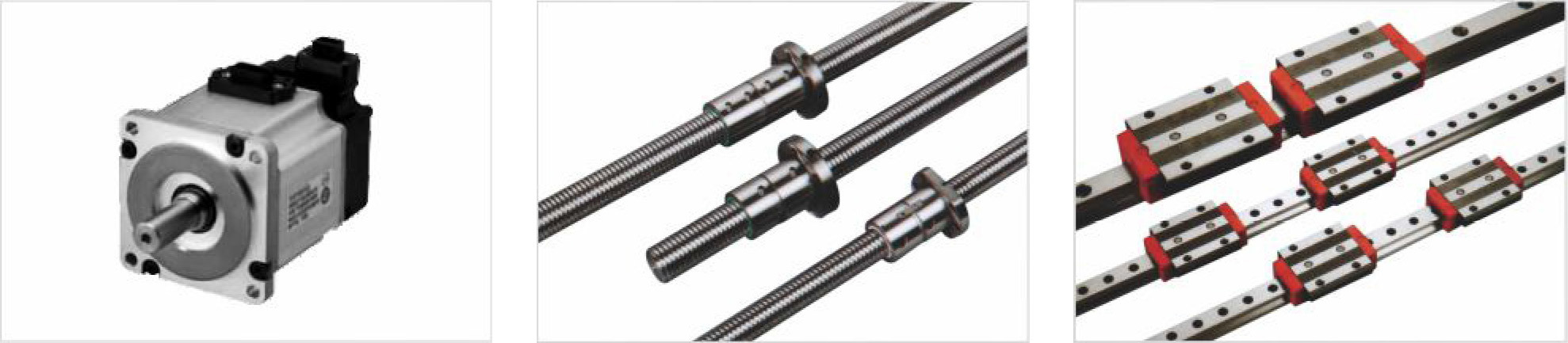

● All axes adopt German Rexroth guides and Taiwan imported C5-grade double-nut ball screws.
● Adopts a fixed workbench, high-grade castings, and secondary tempering treatment to ensure high rigidity and machine stability during processing.
● Multiple spindle heads can work independently or simultaneously. When multiple electrodes process the same job, processing efficiency is significantly improved and can be doubled.
● Each spindle head is equipped with an independent control power supply, allowing independent adjustment of processing parameters to achieve high-precision machining.
● Through optimized design, mechatronics can reduce equipment footprint and improve space utilization in the production workshop while ensuring processing efficiency.
● Plus's brand new operating system is easy to operate and intelligent, reducing manual operation difficulty and error rates.
Specifications and Configurations
| Machine Host | N180D | N200D |
N220D |
N280D |
| Working Tank Inner Dimensions (mm) | 2200*2500*650 | 2400*3000*650 | 2800*4000*750 |
2800*4000*750 |
| Workbench Dimensions (mm) | 1800*1600 |
2000*1800 |
2200*2000 |
2800*2400 |
| Working Travel (mm) | 600*1000/1000*400 | 700*1200/1200*500 |
800*1450/1450*600 |
900*1650/1650*700 |
| Door Width (mm) | 1800 |
2000 |
2200 |
2400 |
| Z-axis distance from workbench surface high and low points (mm) | 850-1250 |
850-1350 | 900-1500 |
900-1650 |
| Max Machining Electrode Weight (kg) | 400 | 450 |
450 |
450 |
| Max Machining Workpiece Weight (kg) | 12000 |
15000 |
20000 |
25000 |
| XYZ Positioning Accuracy (mm) | 0.01 |
0.01 |
0.01 |
0.01 |
| XYZ Repeatability (mm) | 0.005 |
0.005 |
0.005 |
0.005 |
| Minimum Drive Unit (mm) | 0.001 |
0.001 |
0.001 |
0.001 |
| Max Current of Electrical Cabinet | 50A |
|||
| Input Voltage | 380V |
|||
| Max Number of Controlled Axes | Three Axes (standard), Multi-axis (optional) |
|||
| Input Method | Touchscreen, Keyboard, Mouse |
|||
| Display Method | LCD |
|||
| Total Machine Power (KVA) | 10(4) |
|||
| Overall Machine Footprint | 6000*4000*3200 |
7000*4500*3400 | 8000*5000*3500 | 9000*5000*3500 |
| Machine Weight Approx. (KG) | 20000 |
25000 | 30000 | 37000 |
| Standard Configuration | Automatic fire extinguishing device, electrode chuck, filter element, tool box, manual, work light |
|||
| Optional Devices | EDM fluid, flexible fixture, machining auxiliary head, voltage stabilizer, oil cooler |
|||
Standard configurations and optional accessories may vary by version. Following the principle of continuous product development, our company reserves the right to change product technical parameters, equipment, optional parts, and colors at any time by the principle of continuous product development, our company reserves the right to change product technical parameters, equipment, optional parts, and colors at any time and does not have to give notice of such changes
These parameters provide general information and do not constitute a contractual document.
