N series bullhead high speed spark machine
Previous page
N series double bull head high speed spark machine
Description
Characteristics
●With a fixed workbench design and a full-box design,
●Dense multi-layered bone support strength, to ensure that heavy
●load timing station does not deform.
●The X.Y.Z three-axis uses Taiwan imported C5 grade double nut ball wire rod.
●X.Y.Z three axes are used in Japan's original imported "Panasonic" AC servo motor.
●Hand-pulled heavy lfting doors to make lfting easily.
| Model/project | PLS-N100 | PLS-N120 |
| Working slot size（mm） | 2000*1100*650 | 2000*1300*700 |
| Table size（mm） | 1200*700 | 1250*800 |
| Working stroke XYZ （mm） | 1000*550*400 | 1200*600*450 |
| Z-wheelbase table high and low points（mm ） | 450-900 | 550-1000 |
| Maximum processed electrode weight（kg） | 300 | 300 |
| Maximum workpiece weight for machining（kg） | 4000 | 5000 |
| XYZ positioning accuracy（mm） | 0.005 | 0.005 |
| XYZ repeatable positioning accuracy（mm ） | 0.002 | 0.002 |
| Minimum drive unit（mm） | 0.001 | 0.001 |
| The weight of the machine tool is approximate（KG） | 5500 | 6000 |
| Oil-immersed tanks come standard with capacity（L） | 1500 | 800(2) |

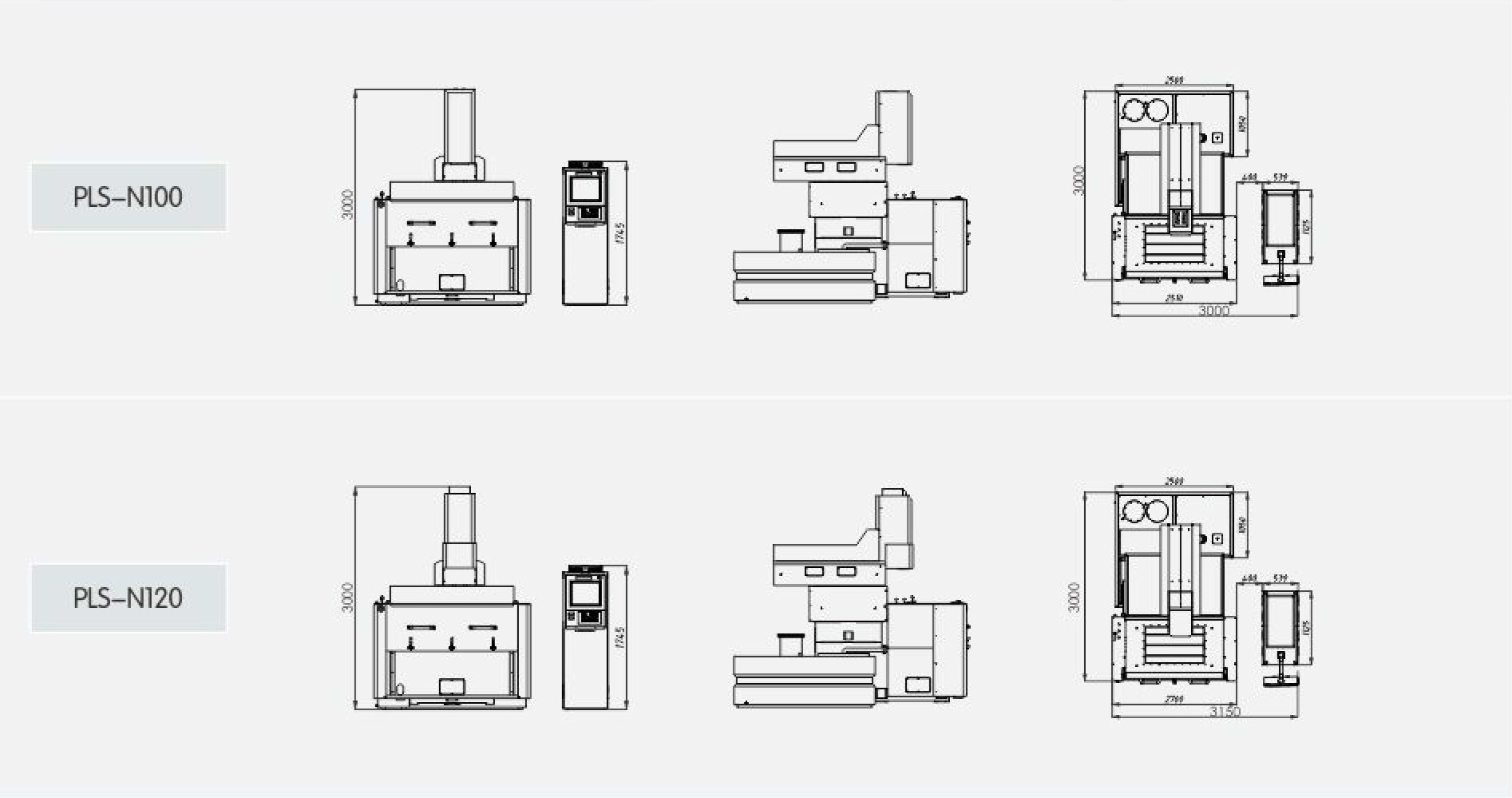

| Machine tool dimensions（mm） | 3000*3000*3000 | 3150*3000*3000 |
| Electromechanical integrated dimensions（mm） | 2500*3000*3000 | 2700*3000*3000 |
| Standard configuration | Automatic fire extinguishing device, electrode chuck, filter element, toolbox, manual, work light | |
| Optional configuration | EDM fluid, flexible quick fixture, magnetic chuck cup | |
* Standard configuration and optional configuration vary according to different versions. In line with the principle of continuous development of products. our company reserves the right to change the technical parameters, equipment, optional parts and colors of products at any time.
* This parameter sheet provides general information and is not intended as a contractual document.
