Single axis graphite high speed spark machine
Previous page
None
Next page
Description
Characteristics
●The body uses resin sand to destress advanced cast iron.
●The Z-axis of the machine tool uses panasonic AC servo motor and precision ball screw.
●With a wide base, saddle, track with V-type and graphic design, plus imported "Teflon" wear veneer under heavy pressure sliding light, no crawling.
●Lamps, oil injectors, patent chucks, are imported.
●Two head design. 。
| Models/Projects | PLS-Z350 | PLS-Z450 | PLS-Z540 | PLS-Z550 | PLS-Z650 |
| Working channel size (mm) | 1080*580*350 | 1200*620*450 | 1240*750*500 | 1420*850*550 | 1920*1060*620 |
| Working table size (mm) | 600*320 | 700*400 | 800*500 | 1000*500 | 1000*600 |
| Working stroke XYZ (mm) | 350*250*180 | 450*350*200 | 500*400*220 | 550*450*250 | 650*450*300 |
| Supplementary Itinerary | 200 | 200 | 250 | 300 | 300 |
| Maximum distance from table to electrode head plane | 350 | 350 | 540 | 640 | 850 |
| Max. processed electrode weight (kg ) | 50 | 80 | 100 | 100 | 150 |
| Maximum workpiece weight (kg) | 700 | 1000 | 1200 | 1500 | 2000 |
| XY table flatness | 0.03/300 | 0.03/300 | 0.03/300 | 0.03/300 | 0.03/300 |
| X/Y axis scales | Double wave5um | Double wave5um | Double wave5um | Double wave5um | Double wave 5um |
| Maximum current of the electrical cabinet | 50A (100) | ||||
| Support machining technology | Copper-steel, graphite-steel, steel-steel, copper-tungsten alloy-cemented carbide | ||||
| Minimal losses | ≤0.2% | ||||
| Input voltage | AC380V (Domestic) | ||||
| Optimum surface roughness | Roum≤0.3 | ||||
| Input method | Industrial keyboard | ||||

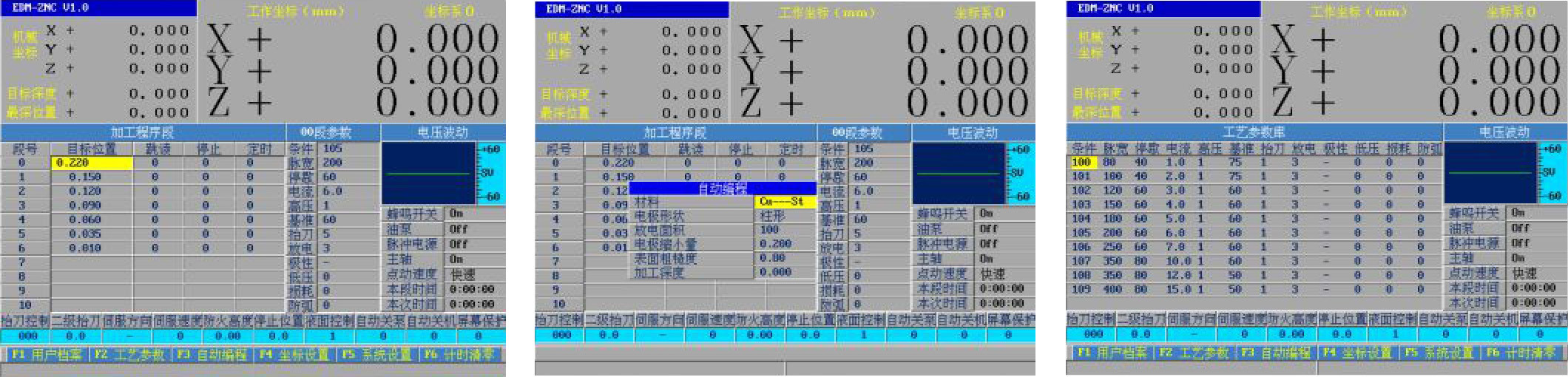

| How it is displayed | 15 inch LCD screen(LCD-TFT) | ||||
| Total power (KVA) | 8 | 8 | 8 | 8 | 8 |
| Machine Dimension(mm) | 2000*1500*2250 | 2500*1500*2200 | 2700*1500*2300 | 3000*1800*2300 | 3500*1800*2300 |
| Machine weight approx. (KG) | 1700 | 2300 | 2500 | 2800 | 3800 |
| Standard configuration | Automatic fire extinguishing device, electrode chuck, filter element, toolbox, help book, work light | ||||
| Optional configuration | EDM fluid, flexible quick fixture, magnetic chuck cup | ||||
* Standard configuration and optional configuration vary according to different versions. In line with the principle of continuous development of products. our company reserves the right to change the technical parameters, equipment, optional parts and colors of products at any time.
* This parameter sheet provides general information and is not intended as a contractual document.
